Product overview
Power: Selected scroll datasheet required · Pressure: Selected model duty to agree · Flow: Selected model flow/reference required

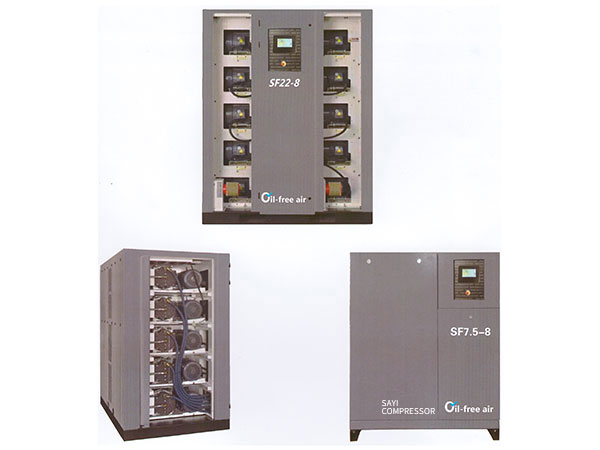

SAYI publishes oil-free scroll machines separately from its screw-compressor categories. The original scroll photograph shows SF22-8 and SF7.5-8 markings and open and closed package views. These visible markings identify photographed examples; their numbers are not decoded into verified kW, bar or delivered flow.
The material obtained from this product page does not provide a readable numerical model-rating table. Request the chosen scroll model's complete datasheet with motor/package input, discharge pressure, delivered flow and reference/test conditions. The product-parameter image obtained is another package photograph, not a numeric datasheet. Ratings from the YMF or BMF screw tables must not be assigned to scroll units.
Oil-free category wording describes the compressor family. It does not establish current ISO 8573-1 Class 0 certification, dry or particle-free air, food-contact suitability or the inclusion of all downstream treatment. State required oil/moisture/particle quality at the receiving point and agree the treatment and test boundary.
For a modular package, obtain the actual number of scroll units, individual/combined capacities, sequencing, permitted operating cycle and capacity with one module stopped. A multi-module photo alone does not prove N+1 standby or uninterrupted service. Establish cooling, ambient limits, noise conditions, condensate handling and access for module replacement.
Provide process pressure, average/peak reference flow, operating hours, electrical supply, available installation space and air-quality requirement. Agree receiver, dryer, filters, controls/protections, wiring and package drawings, maintenance intervals, consumables and acceptance checks. Confirm commissioning, warranty scope and destination service. The complete original three-view photo remains visible without cropping; it illustrates the published scroll family rather than a tested installed system.
| Catalog reference | SAYI-SCROLL |
|---|---|
| Machine | Scroll |
| Power | Selected scroll datasheet required |
| Working pressure | Selected model duty to agree |
| Published flow | Selected model flow/reference required |
| Air quality | — |
| Duty | Food / pharma |
| Supply | Not specified |
| Plant | SAYI (Wenling works) |
| Mechanism | Oil-free scroll category |
| Photographed identifiers | SF22-8 and SF7.5-8;ratings not decoded from labels |
| Numerical model table | Obtain selected model datasheet |
| Capacity/reference | Offered delivered flow and test conditions required |
| Module boundary | Number,sequencing and stopped-module capacity to agree |
| Air quality | Oil/moisture/particle criteria and treatment/test boundary |
| Class0 | No current model-specific certificate established |
| Installation | Actual envelope,cooling,access and electrical schedule |
| Included auxiliaries | Receiver,dryer,filters and controls to agree |
Plant
SAYI (Wenling works)
Wenling
The plant remains the seller. This desk issues the English duty sheet so quotes are comparable across clusters.
