Bolaite SPR oil-free scroll compressors — Bolaite (Shanghai) / Atlas Copco China brand
Bolaite SPR oil-free scroll compressors · Bolaite (Shanghai) / Atlas Copco China brand
Datasheet
Product overview
Bolaite SPR oil-free scroll compressors from Bolaite (Shanghai) / Atlas Copco China brand
SPR is Bolaite's oil-free scroll range. The corresponding official product image shows an SPR 5 T package; the published range table covers a wider family and does not assign the whole range to that photographed model.
The current family table lists 1.5–22 kW, 0.8–1.0 MPa and 6.8–147 m³/h flow. Retain the hour-based unit when comparing this equipment with screw ranges stated in m³/min. Obtain the exact scroll model's delivery at the required pressure and the stated reference/test conditions.
The product description offers an optional built-in dryer and describes IE3 motors. Confirm whether the quoted machine contains a dryer, its pressure-dew-point performance and operating conditions, and which filters or receiver are included. A motor-efficiency description is separate from complete-package input.
For a laboratory, production or other clean-air enquiry, specify demand over the duty cycle, required pressure at the user and oil/particle/moisture requirements at the point of use. Obtain the selected model's supporting quality documents and any application-specific acceptance requirements. Oil-free scroll construction does not establish sterile or breathable air. Define ambient, ventilation, sound measurement conditions, electrical supply, maintenance access, commissioning and spares before comparing quotations.
| Catalog reference | BOLAITE-SPR |
|---|---|
| Machine | Scroll |
| Power | — |
| Working pressure | — |
| Published flow | — |
| Air quality | — |
| Duty | Food / pharma |
| Supply | Not specified |
| Plant | Bolaite (Shanghai) / Atlas Copco China brand |
| Construction | SPR oil-free scroll |
| Published family power | 1.5–22 kW |
| Published pressure band | 0.8–1.0 MPa |
| Published family flow | 6.8–147 m³/h (per hour) |
| Photographed model | SPR 5 T; range table is not an SPR 5 T model rating |
| Dryer | Built-in option described; offered inclusion and dew-point performance to confirm |
| Process requirements | Selected duty and oil/particle/moisture measurement point |
Plant
Bolaite (Shanghai) / Atlas Copco China brand
Wuxi / Shanghai
The plant remains the seller. This desk issues the English duty sheet so quotes are comparable across clusters.
Same type
Related Scroll products
Compare the published product information for each manufacturer.
| Catalog ref. | Type | Power | Pressure | Flow | Air quality | Plant | |
|---|---|---|---|---|---|---|---|
 SONYO-SCROLLSonyo B-series commercial scroll compressors
|
Scroll | 3.5–7 HP manufacturer family class | Refrigerant pressure: confirm model envelope | — | — | Bingshan Sonyo Compressor | RFQ |
 GUANGWO-ATMO-SCROLLGuangwo GW-10D lubricated scroll — paired standard-pressure duties
|
Scroll | Motor rating: obtain clarified nameplate | Paired duties:0.8 /1.0 MPa | 1.05 at0.8 /0.95 at1.0 MPa, m³/min | — | Guangwo | RFQ |
 AI-OILFREE-SCROLLANEST IWATA SLPJ single-head and multiple-head oil-free scroll packages
|
Scroll | — | — | — | — | ANEST IWATA | RFQ |

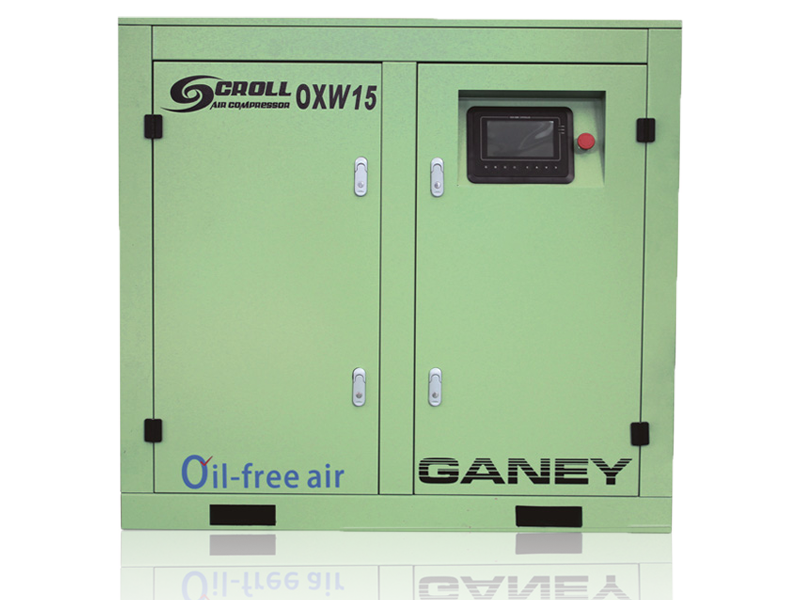

 GANEY-OXOXW oil-free scroll compressors
|
Scroll | Selected OXW datasheet required | Selected model / duty to be agreed | Selected-pressure delivery required | — | Ganey | RFQ |

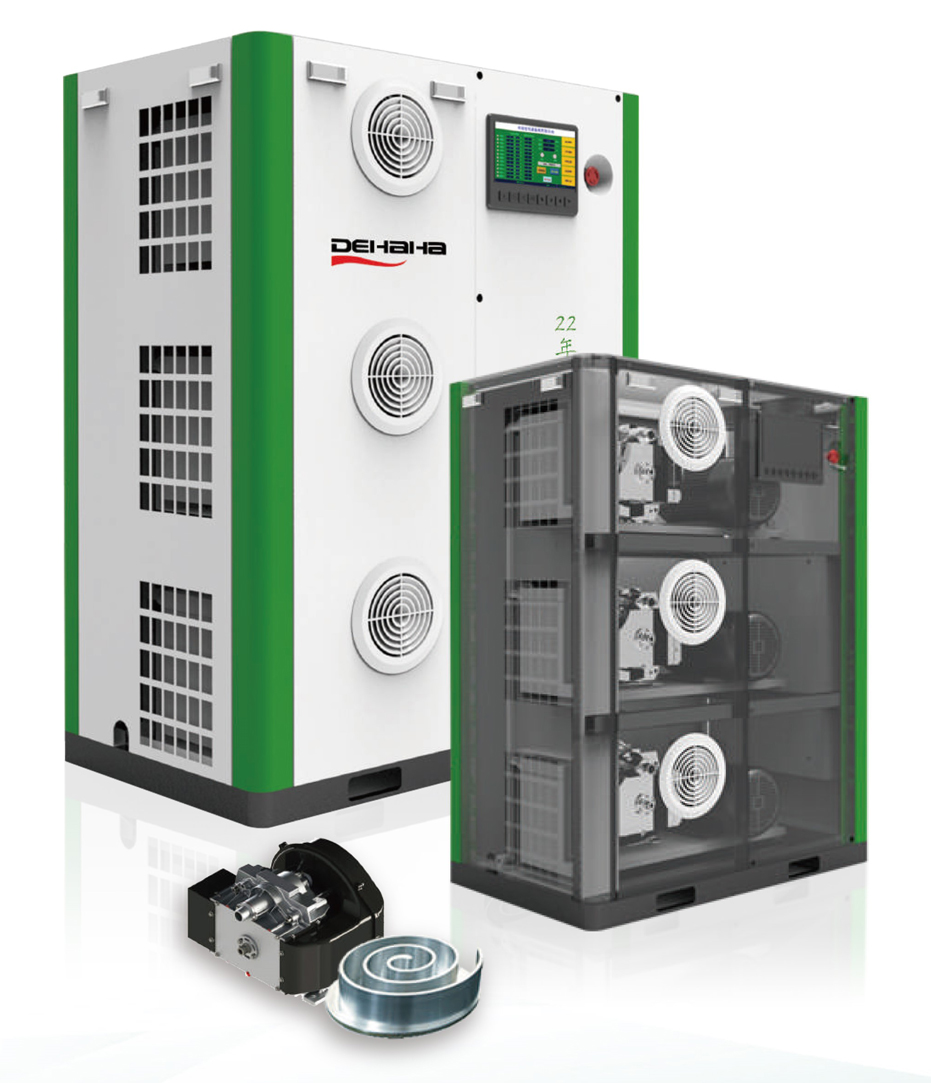

 DHH-DCODehaha DCO modular oil-free scroll — 8 bar duty and module counts
|
Scroll | Selected table 3–44 kW; model numbers differ | 8 bar — published table | 0.35–5.20 m³/min at 8 bar — separate models | — | Dehaha | RFQ |
 GUANGWO-MP-SCROLLGuangwo GW-15DHY16 lubricated scroll receiver / dryer package
|
Scroll | Motor and dryer ratings: clarified schedule required | 1.6 MPa published duty | 1.0 m³/min at1.6 MPa | — | Guangwo | RFQ |
BOLAITE-SPR: Voltage and frequency matter as much as bar. State both. Include the required operating conditions with your enquiry.
