Product overview
Power: 3 kW motor · Pressure: 400→1600–2500 kPa(G) · Flow: 1.51 Nm³/h;specified wet-H2 mixture
IOT's hydrogen table identifies ZW-0.006/4-(16~25) for 98.9% hydrogen and 1.1% water. It gives 1.51 Nm³/h with explicitly gauge-labelled suction 400 kPa(G) and delivery 1600–2500 kPa(G). Retain the mixture and gauge convention; the range is not a complete capacity map for a different inlet or composition.
The Z-type has two stages and two cylinders, belt drive, water cooling and 540 rpm compressor speed. The listed motor is 3 kW, 380 V, 50 Hz. Table envelope is 1300 × 950 × 1150 mm and weight 374 kg; obtain the supplied configuration's installation/removal drawing. The inlet temperature entry is ≤40°C, while the cooling-water flow and inlet temperature are not specified by this compact table.
Its lubrication entries distinguish crankshaft, connecting rod and crosshead with lubricating oil from non-lubricated cylinders and packing. Define gas-contact seals/materials and purity/carryover acceptance. The motor entry gives IP55 and DIICT4, which requires actual component documents and destination suitability checks; it is not independently verified whole-package certification.
Send gas analysis/moisture variation, actual suction envelope, delivery/receiver requirement, normal-volume reference, base/peak flow and cycle. Agree coolant requirements, drive/electrical controls, protective instruments, vent/recovery and qualified installation acceptance in the engineered scope. A generic hydrogen-filling application does not establish vehicle-fuelling capacity for this 1.51 Nm³/h selection.

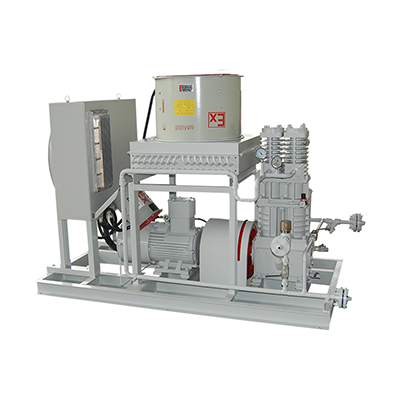

Request offered duty curve, package input, P&ID, unit drawings, actual tests, manuals, wear parts and commissioning/service responsibilities. Agree order-specific warranty and destination support. The preserved original catalogue picture is not a visited-factory photograph or a guarantee of every quoted accessory.
| Catalog reference | IOT-H2 |
|---|---|
| Machine | Process gas |
| Power | 3 kW motor |
| Working pressure | 400→1600–2500 kPa(G) |
| Published flow | 1.51 Nm³/h;specified wet-H2 mixture |
| Air quality | — |
| Duty | Energy / gas |
| Supply | Not specified |
| Plant | Bengbu IOT Compressor |
| Model | ZW-0.006/4-(16~25) |
| Medium | 98.9% hydrogen;1.1% water |
| Normal flow | 1.51 Nm³/h;normal reference to agree |
| Suction / delivery | 400 /1600–2500 kPa(G) |
| Stages / cylinders | 2 /2 |
| Drive / cooling | Belt /water |
| Compressor speed | 540 rpm |
| Motor | 3 kW;380 V;50 Hz |
| Motor table designation | IP55;DIICT4;actual documents and installation suitability to verify |
| Inlet temperature | ≤40°C |
| Envelope / weight | 1300 × 950 × 1150 mm /374 kg |
| Lubrication | Cylinders/packing non-lubricated;running gear oil-lubricated |
Plant
Bengbu IOT Compressor
Bengbu
The plant remains the seller. This desk issues the English duty sheet so quotes are comparable across clusters.
