Feihe FHLY geared centrifugal air — inlet-volume selection bands — Shanghai Feihe Compressor Manufacturing

Datasheet

Product overview

Power: 185–1500 kW — separate motor bands · Pressure: 5–10 kg/cm² — original unit · Flow: 42–300 m³/min inlet volume — separate bands

Feihe's FHLY centrifugal-air table expressly gives inlet-volume flow. FHLY40-90 spans 42–90 m³/min with a 185–400 kW motor band; FHLY90-140 spans 90–140 with 400–700 kW; FHLY140-200 spans 140–200 with 700–1050 kW; and FHLY200-300m spans 200–300 with 1050–1500 kW. Each lists 5–10 kg/cm² discharge pressure. Preserve that published pressure unit and inlet-volume basis rather than relabelling the figures as bar, normal volume or certified FAD. The bands are selection envelopes, not paired duties of one machine.

Published reference conditions include air at 1 bar absolute inlet pressure, inlet temperature below 35°C and cooling water below 32°C. The page's percentage condition is inconsistently labelled, so obtain an unambiguous inlet-humidity requirement with the actual performance sheet. FHLY40-90's listed envelope is 3200 × 2000 × 2000 mm with 6000–7500 kg mass; FHLY200-300m is 4800 × 2400 × 2600 mm and 16000 kg. The current foundation, lifting and access drawings remain necessary for installation.

The manufacturer describes a geared package, horizontally split casing, inspectable water-cooled heat exchangers, automatic control and anti-surge control. Its standard scope lists compressor core, inlet expansion joint, inlet guide vanes, cooling and lubrication systems, controller, blow-off components, discharge check valve and expansion joint. Inlet filtration, monitoring, acoustic enclosure and a motor above IP54 are described as selectable items; agree the actual protection class and included scope.

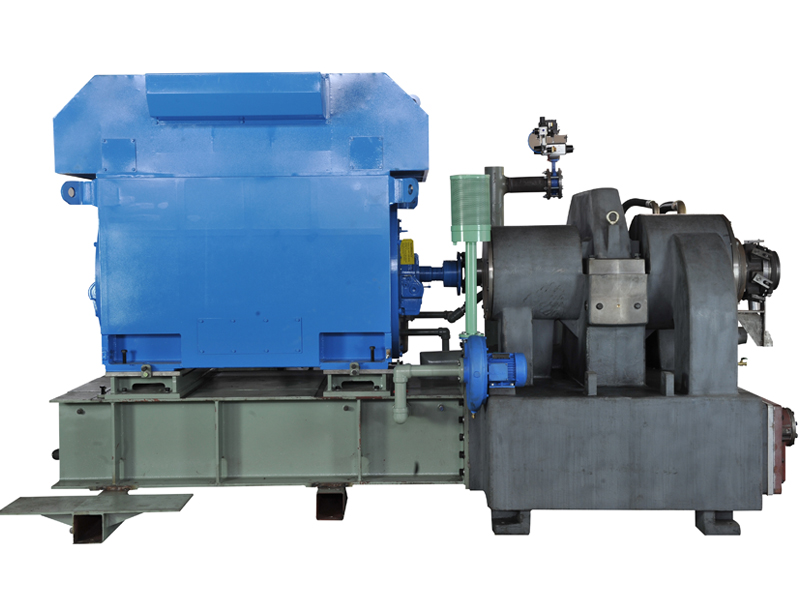

Supply the site's inlet and cooling-water conditions and demand/load cycle. Request the compressor map, minimum stable flow and blow-off strategy, package input, transient/sequence control, cooling-water quantity/quality and maintenance access. Align inlet/discharge piping, foundations, electrical supply, inspections, manuals, wear parts and commissioning. The original product photograph is a family view, not an exact configured motor or guaranteed map.

Catalog reference	FEIHE-FHLY
Machine	Centrifugal
Power	185–1500 kW — separate motor bands
Working pressure	5–10 kg/cm² — original unit
Published flow	42–300 m³/min inlet volume — separate bands
Air quality	—
Duty	Energy / gas
Supply	Not specified
Plant	Shanghai Feihe Compressor Manufacturing
Technology	Geared centrifugal air package
FHLY40-90	Inlet flow42–90 m³/min;5–10 kg/cm²;motor185–400 kW
FHLY90-140	Inlet flow90–140;5–10 kg/cm²;motor400–700 kW
FHLY140-200	Inlet flow140–200;5–10 kg/cm²;motor700–1050 kW
FHLY200-300m	Inlet flow200–300;5–10 kg/cm²;motor1050–1500 kW
Reference	Inlet1bar absolute; inlet temperature below35°C; cooling water below32°C
FHLY40-90 dimensions/mass	3200 × 2000 × 2000 mm;6000–7500 kg
FHLY200-300m dimensions/mass	4800 × 2400 × 2600 mm;16000 kg
Control/scope	IGV and anti-surge; core, expansion joints, cooling/lube/control, blow-off and check valve described
Options	Inlet filter, monitoring, acoustic enclosure, motor protection to agree
Performance	Exact compressor map, duty, inlet humidity and package input required
