Huitong Xinda HV two-stage screw — pressure-linked model duties — Qingdao Huitong Xinda Air Compressor

Datasheet

Product overview

Power: HV-22ⅡG:22 kW · Pressure: HV-22ⅡG:0.8/1.0/1.3 MPa · Flow: 4.1/3.5/3.2 m³/min respectively

Huitong Xinda describes an oil-associated two-stage screw process: intake air is mixed with lubricant in the first compression chamber, cooled by oil mist between stages and compressed again to the final discharge. The manufacturer describes helical-gear drive for two rotor stages in one housing. Two-stage compression and speed control are separate characteristics from downstream air purity; do not treat this as an oil-free compressor.

The official 11–37 kW category contains a table with HV-15ⅡG, HV-18.5ⅡG, HV-22ⅡG, HV-30ⅡG and HV-37ⅡG at 15, 18.5, 22, 30 and 37 kW. No 11 kW row is supplied in that table. For HV-22ⅡG, the paired values are 4.1 m³/min at 0.8 MPa, 3.5 at 1.0 MPa and 3.2 at 1.3 MPa. HV-37ⅡG gives 7.1, 5.8 and 5.4 m³/min at the same respective pressures. These pressure-linked ratings are not interchangeable capacities at every operating pressure or speed.

The table specifies air cooling, direct drive, variable-frequency starting and a −5 to +45°C environment. It lists 760 kg for HV-22ⅡG and 980 kg for HV-37ⅡG. Electrical choices are printed as 380 V/50 Hz, 220 V/60 Hz, 415 V and custom voltage; confirm phase and the actual frequency of the selected option. Shared dimension/outlet cells span model groups, so use the offered model's installation drawing rather than guessing a column assignment. Noise and exhaust-temperature labels need actual test conditions before they become acceptance requirements.

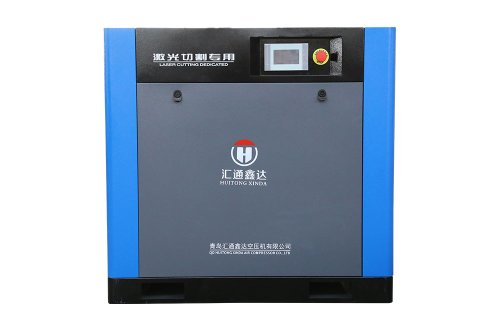

Define shift demand, minimum and peak flow, point-of-use pressure, operating hours and other compressors on the network. Request the speed range, usable turndown, package input and control sequence at the selected pressure, with stated flow reference conditions. Agree drying, filtration and receiver scope separately, plus heat rejection, ventilation and service clearances. Obtain the exact control/motor configuration, protection schedule, parts/manuals, commissioning and test documents. The complete official category photograph illustrates a two-stage cabinet; it does not prove the exact cabinet or bill of materials for HV-22ⅡG.

Catalog reference	HTXD-TWOSTAGE
Machine	Rotary screw
Power	HV-22ⅡG:22 kW
Working pressure	HV-22ⅡG:0.8/1.0/1.3 MPa
Published flow	4.1/3.5/3.2 m³/min respectively
Air quality	—
Duty	General industry
Supply	Not specified
Plant	Qingdao Huitong Xinda Air Compressor
Reviewed family	HV two-stage screw
HV-22ⅡG motor	22 kW
HV-22ⅡG flow/pressure	4.1 m³/min at 0.8 MPa;3.5 at 1.0;3.2 at 1.3
HV-22ⅡG weight	760 kg
HV-37ⅡG motor/weight	37 kW;980 kg
HV-37ⅡG flow/pressure	7.1 m³/min at 0.8 MPa;5.8 at 1.0;5.4 at 1.3
Cooling/start	Air cooling;variable-frequency start
Environment	Printed −5 to +45°C;confirm site derating
Lubrication	Oil-associated compression and interstage oil mist
Flow qualification	Printed volume reference not fully defined
Electrical	380 V/50 Hz;220 V/60 Hz;415 V/custom;phase to confirm
Installation	Offered drawing and clearances;shared table cells not guessed
