Shaangu EIZ/EIZT internally cooled centrifugal air-separation trains — Xi’an Shaangu Power
Shaangu EIZ/EIZT internally cooled centrifugal air-separation trains · Xi’an Shaangu Power
Datasheet
Product overview
Power: Offered train driver/input required · Pressure: ASU air-duty envelope to agree · Flow: ASU oxygen output is not compressor flow
Shaangu describes EIZ/EIZT as single-suction, multistage, high-speed, two-bearing centrifugal equipment for large air-separation installations. Internal interstage coolers shorten the gas path; a motor via gearbox or suitable high-speed direct motor/steam-turbine drive is selected for the train. The overview refers to two kinds and fourteen models without a complete numerical duty table.
Published features include inlet guide-vane regulation, a water-washing system for impellers/cooler tubes, integrated gas/water separation and automatic discharge of condensate/wash water. The manufacturer advertises a 75–105% variable-duty range; this is not a verified surge curve or universal minimum capacity at every pressure. Request the offered model's map and actual control/operating boundaries.
The separate ASU application page lists oxygen-production scales of 10,000–150,000 Nm³/h across solutions and mentions AEZ, EIZT and EG arrangements. Oxygen output is not compressor air flow. Define main-feed-air or booster duty, process pressures and temperatures, licensor interface and design/part-load cases. Do not convert plant production scale into an EIZT rating.
Agree water chemistry and washing procedure, cooler utilities, separation/drain handling, gas quality and permissive/interlock schedule. Determine actual inlet conditioning, downstream treatment, cooling and control responsibilities. The family description does not supply model-specific cooling-water demand, voltage, driver power, dimensional or acoustic guarantees.
Obtain offered capacity/input and speed curves, anti-surge/protection strategy, package/P&ID and foundation/nozzle-load drawings, cooler/service access, instrument and wiring interfaces, manuals and acceptance tests. Confirm commissioning, consumables/spares, warranty and destination support. The original EIZ/EIZT family detail photo illustrates published equipment construction; it is not a model-specific certified performance record.
| Catalog reference | SHAANGU-EIZ |
|---|---|
| Machine | Centrifugal |
| Power | Offered train driver/input required |
| Working pressure | ASU air-duty envelope to agree |
| Published flow | ASU oxygen output is not compressor flow |
| Air quality | — |
| Duty | Energy / gas |
| Supply | Not specified |
| Plant | Xi’an Shaangu Power |
| Family | EIZ/EIZT internally cooled centrifugal |
| Construction | Single suction;multistage;high speed;two bearings |
| Cooling | Internal interstage coolers |
| Control | Inlet guide vanes;manufacturer advertises75–105% variable-duty range |
| Range qualification | Actual selected-model map/surge/pressure envelope required |
| Published features | Water washing;integrated gas/water separation;automatic drainage |
| ASU scale | 10,000–150,000 Nm³/h oxygen-output solutions;not compressor airflow |
| Drive | Geared motor or suitable direct turbine/motor |
| Utilities | Actual cooler/wash water and treatment/drain scope to agree |
| Numerical ratings | Selected train datasheet and acceptance basis |
Plant
Xi’an Shaangu Power
Xi'an
The plant remains the seller. This desk issues the English duty sheet so quotes are comparable across clusters.
- SHAANGU-E · Selected train driver/input to agree
- SHAANGU-EB · Selected EB train input/driver required
Specification pages
Specifying a Centrifugal duty
| Duty | Write on the RFQ |
|---|---|
| Compressor for wastewater treatment | Most aeration trains want low-pressure blowers. If this RFQ is actually 7–8 bar plant air for valves and instruments, say so — it is a different machine from a maglev blower. |
| Centrifugal compressor manufacturers in China | Centrifugal machines are duty-built. A 250 kW “centrifugal compressor China” RFQ without gas, suction and discharge pressure cannot be quoted. |
Same type
Related Centrifugal products
Compare the published product information for each manufacturer.
| Catalog ref. | Type | Power | Pressure | Flow | Air quality | Plant | |
|---|---|---|---|---|---|---|---|
 JTL-INDUSTRIAL-AIRJTL JE centrifugal air compressors and JED single-stage range
|
Centrifugal | JE6000: 355–800 kW · configuration range | JE: 2.2–10.5 barG · select operating point | JE6000: 80–130 m³/min · reference basis to agree | — | Jintongling | RFQ |
 HANWHA-CENTRIHanwha SM / SM100 Pro centrifugal air compressor selections
|
Centrifugal | SM2100 150–335; SM3100 Pro 250–600 kW | SM2100 5.0–11.4 bar(A); Pro duty to select | SM2100 1400–3550; Pro 3300–5690 m³/h | — | Hanwha Power Shanghai — compressor sales and service | RFQ |
 TLINGTE-TITurbo-Tech Ti centrifugal air and nitrogen compressors
|
Centrifugal | Driver selected to duty | 0.06–1.60 MPa(G), family envelope | 1200–24000 Nm³/h, family envelope | — | Turbo-Tech | RFQ |
 HYTP-ISOTHERMAL-AIRHangyang single-shaft isothermal main-air compressors
|
Centrifugal | Motor or steam turbine;duty-specific | Selected main-air delivery duty | ASU scale below40,000 Nm³/h;not air flow | — | Hangyang Turbine | RFQ |

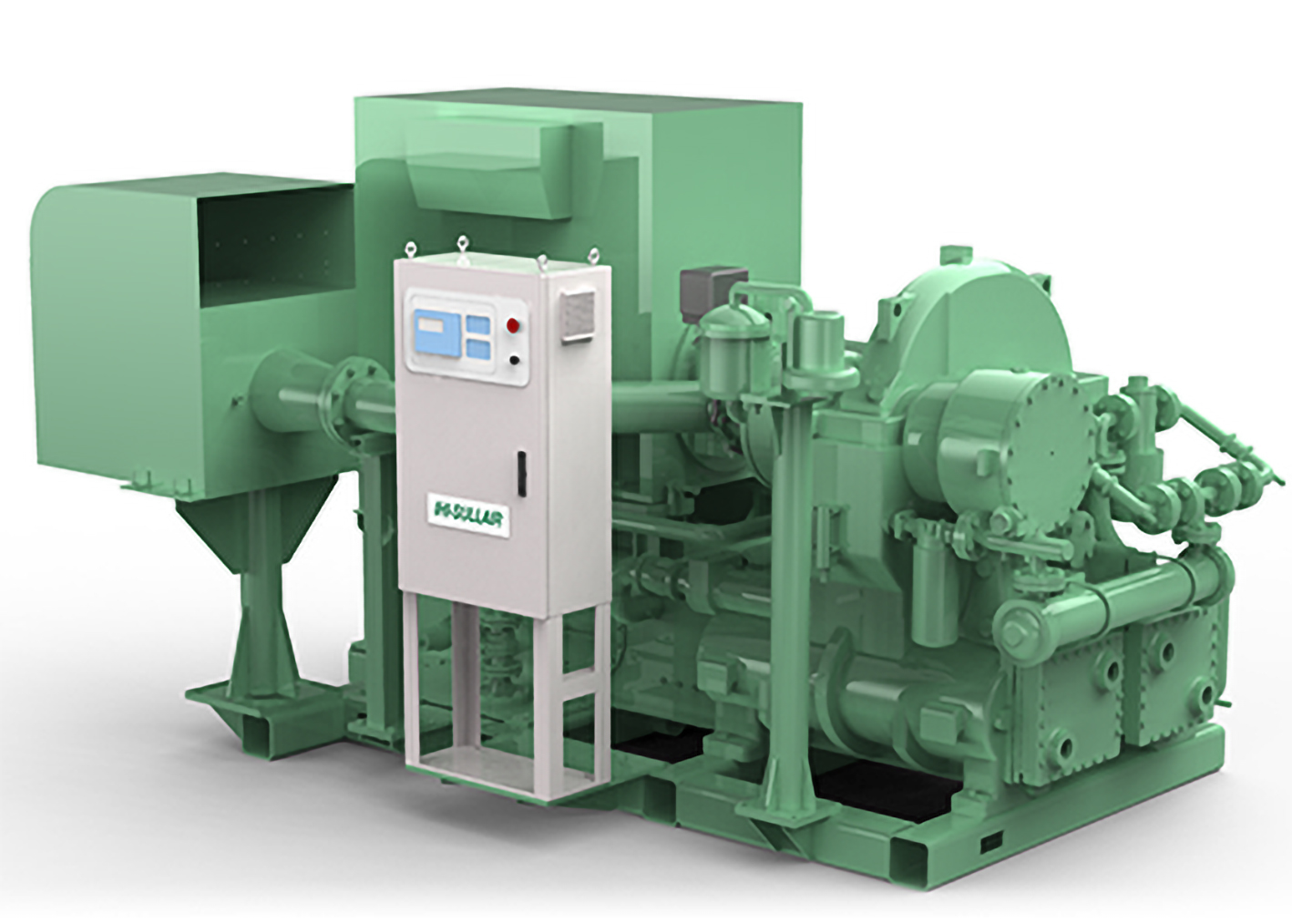

 IHI-SULLAIR-TXIHI-Sullair TX centrifugal air — 4–9 barg series selection
|
